Elevate your space with a precisely crafted custom ladder built to your exact specifications. Explore a range of options and finishes to create the perfect ladder for your style and needs.
Style
All ladder parts — safety side rails, base wheels, and steps — will use the same selection.
Positionable EVO SL.6000.EVO and Industrial ladder SL.6022 do not require style selection
Klassik
“classic” ROUND STRINGERS
30mm diameter (1-3/16”) stainless steel tube
Akzent

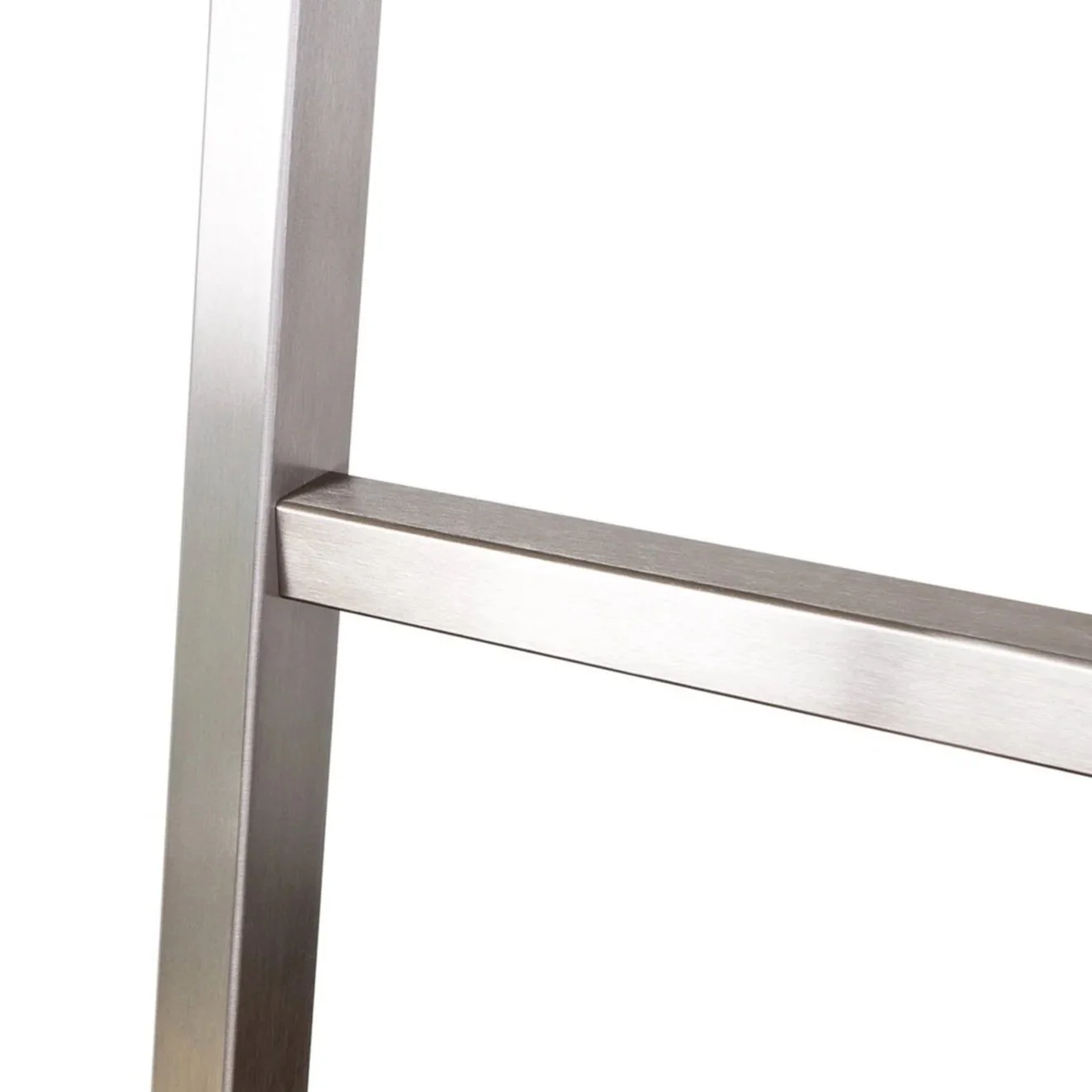

“accent” SQUARE STRINGERS
20x30mm (13/16”x1-3/16”) rectangular stainless steel tube

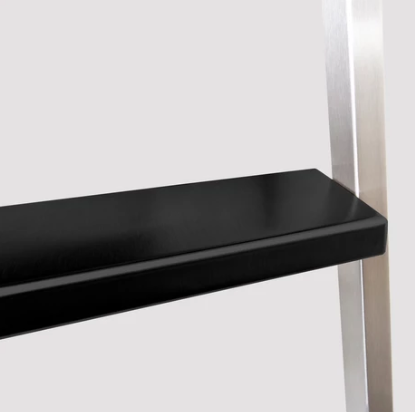

Steps & Rungs
When selecting steps or rungs remember to consider the overall weight of the ladder, comfort and safety.
Positionable EVO SL.6000.EVO and Industrial ladder SL.6022 are available with wood only
Wood Selections
Specify wood to be supplied raw, clear lacquered matte or oil waxed.
Customers can choose to have wood steps made by someone else. Order a sample tread only and have another shop build the rest.
Wenge | SL.6016.W
Cherry | SL.6016.K
Zebrano | SL.6015.Z
Chestnut | SL.6017.K
Walnut | SL.6018.N
White Oak | SL.6016.E
Maple | SL.6015.A
Beech | SL.6016.B
Teak | SL.6017.T

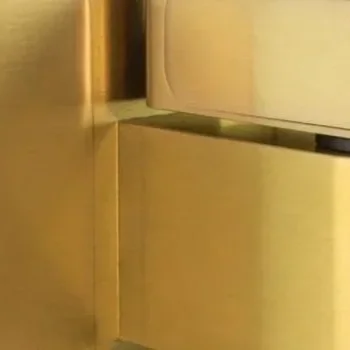

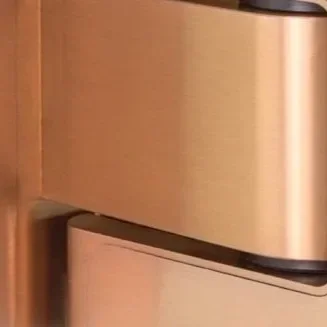

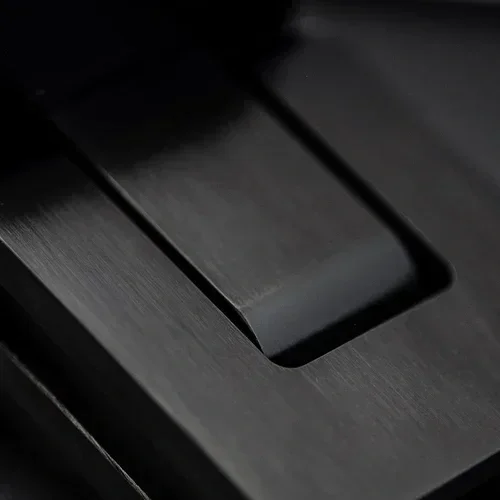

Finishes
Finishes may be on all visible ladder components unless noted
Satin stainless steel is MWE’s standard finish. Other finishes may cost more and take longer to make.
Industrial SL.6022 standard Micro Powder Coated RAL 9005 “Jet Black”
Upgrades
Not every upgrade fits every ladder model.
Base Wheels
SL.6064.KL
SL.6064.AK
Note: When specified with ladder model SL.6005 Vario Telescoping, base wheels are fixed to roll only in a straight line, these wheels will not pivot to navigate curved rail segments
SL.6022.Q
Safety Side Rails
Safety side rails make a ladder more rigid. Required for ladders ≥3000mm (118-1/8"), recommended for ladders over 2438mm (96").
Supplied at about two-thirds of the ladder height, rails add safety, come installed on the ladder, and cannot be added later or removed.
SL.6052.KL
SL.6052.AK
SL.6022
Accessories
Model numbers are listed on the ladder spec sheets. Individual sheets are not available.
Rail Connector
ST.2020.MM / ST.2025
Rails may be supplied in segments of approx. 98” each
Rail Mount
Available rosette in various diameters: Ø20 (13/16”), Ø30mm (1-3/16”), Ø40mm (1-9/16”), Ø50mm (1-15/16”), Ø60mm (2-3/8”)
ST.2100.MM specified for Ø13/16″ solid stainless steel rail ST.2000.20
ST.2100 specified for Ø1″ solid stainless steel rail ST.2000

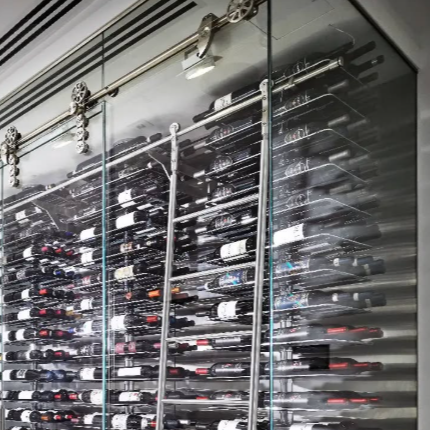

Standard Projection
Standard wall mounts range from : 31mm - 52.5mm (1-1/4” - 2-1/16”)
Measured from center rail to mounting surface
ST.2100.MM
ST.2100
31mm (1-1/4”)
41mm (1-5/8”)
51mm (2”)
42.5mm (1-11/16”)
47.5mm (1-7/8”)
52.5mm (2-1/16”)
